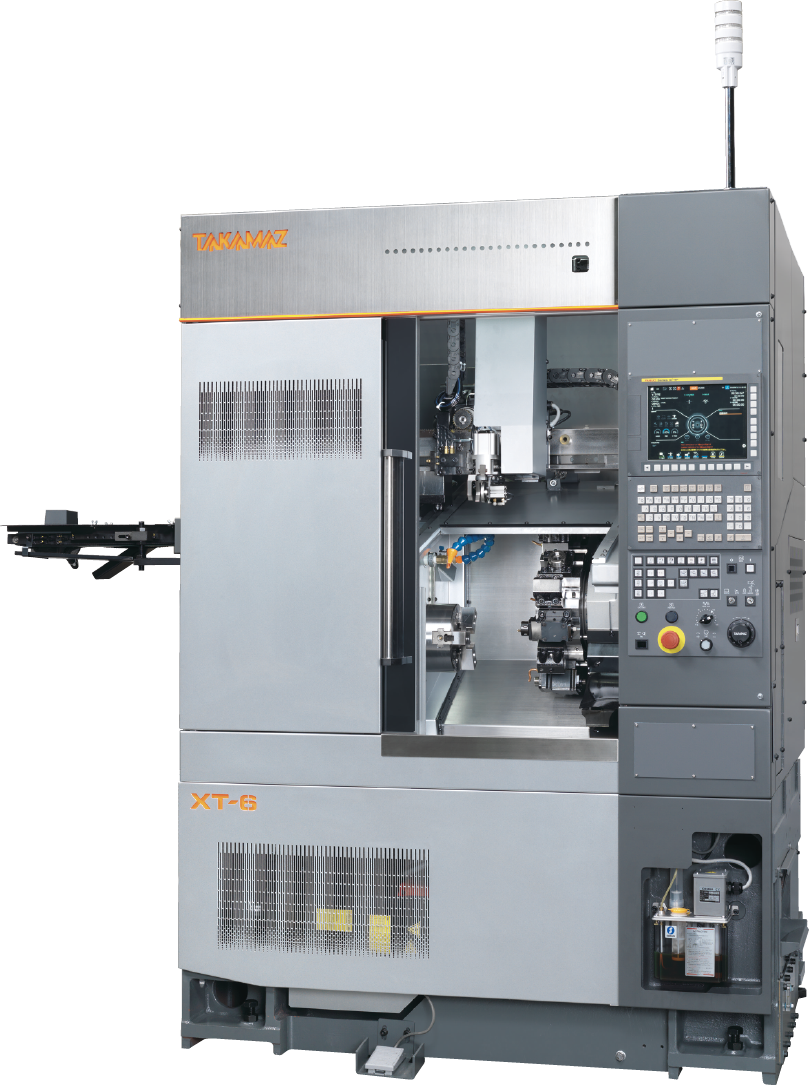

TAKAMAZ X Series

φ180mm

200mm

5,000rpm

6-inch

8-station turret

FANUC 0i-TF PLUS

X, Z axis control

φ340mm (φ300mm)/ φ240/ φ220

370mm/ 348mm/ 353mm (420)

3,500rpm(3,000, 5,000rpm)

8-inch (10-inch)

8-station turret (12-station)

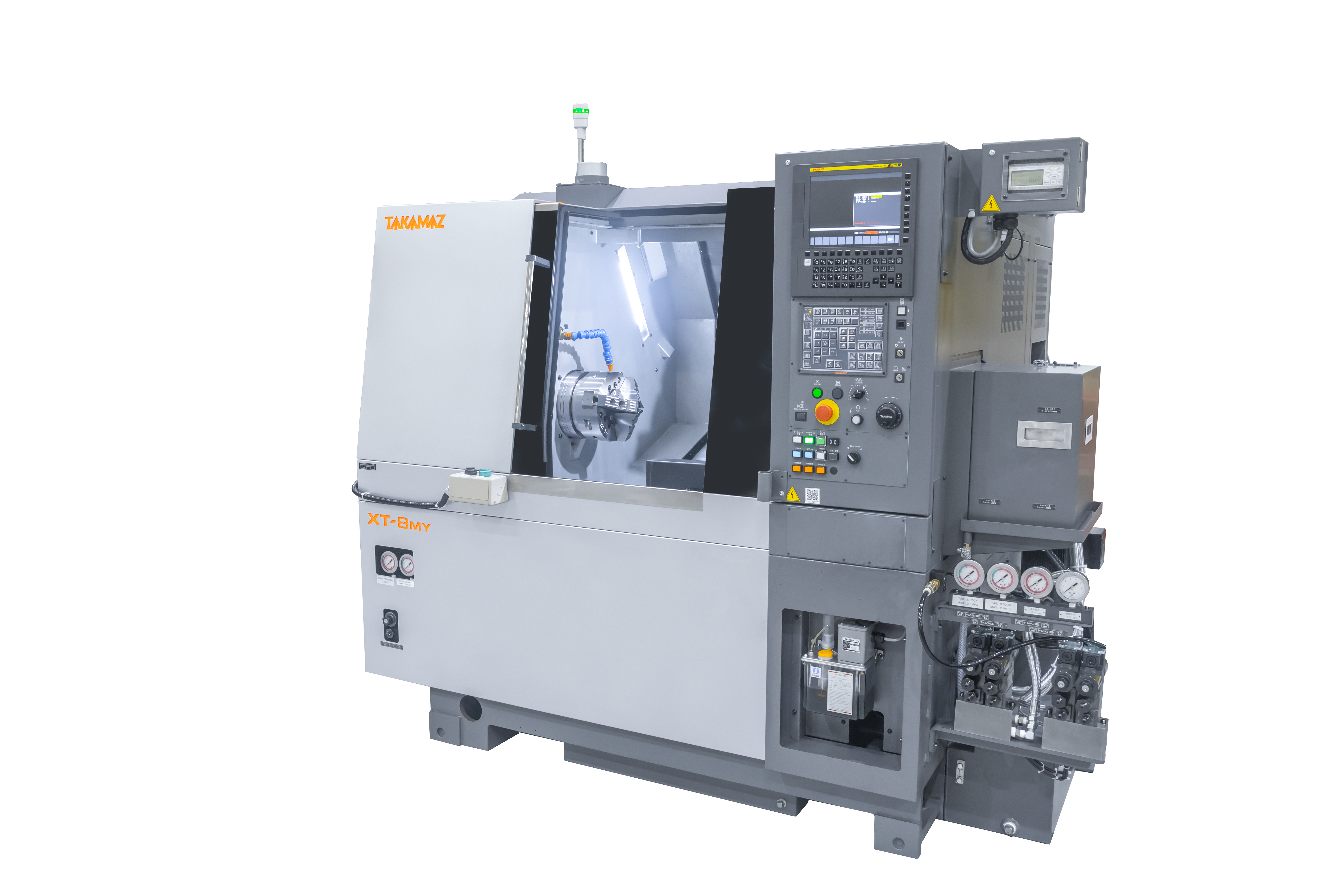

Power Tool (XT-8M/8MY)

FANUC 0i-TF PLUS

X, Z, C, Y axis control

φ340mm (φ300mm)/ φ230mm/ φ230mm

593mm/ 508mm/ 404mm

4,000rpm (5,000, 3,000rpm)

8(10)-inch/ 8-inch

8 (12)/ 12/ 12-station turret

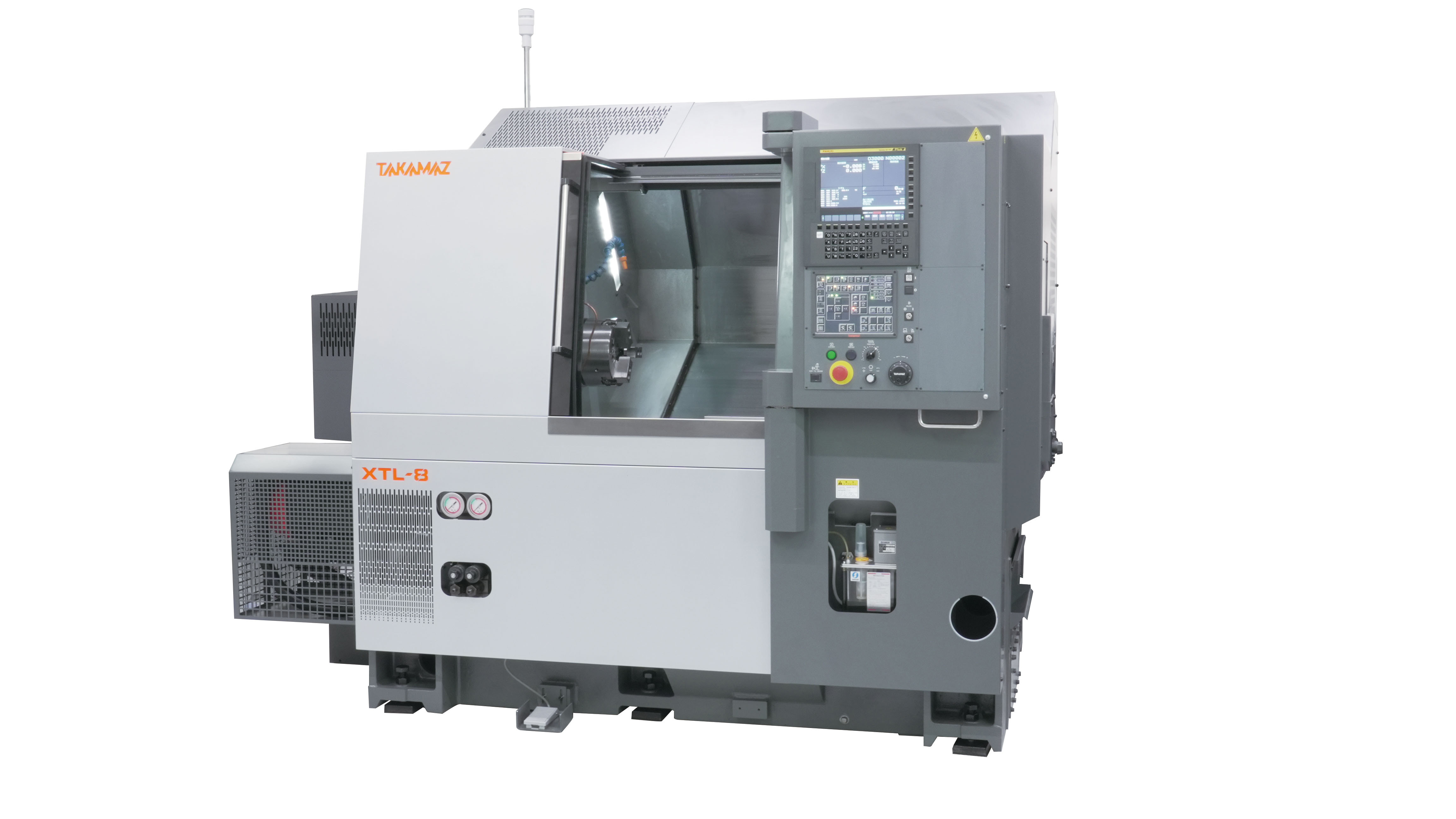

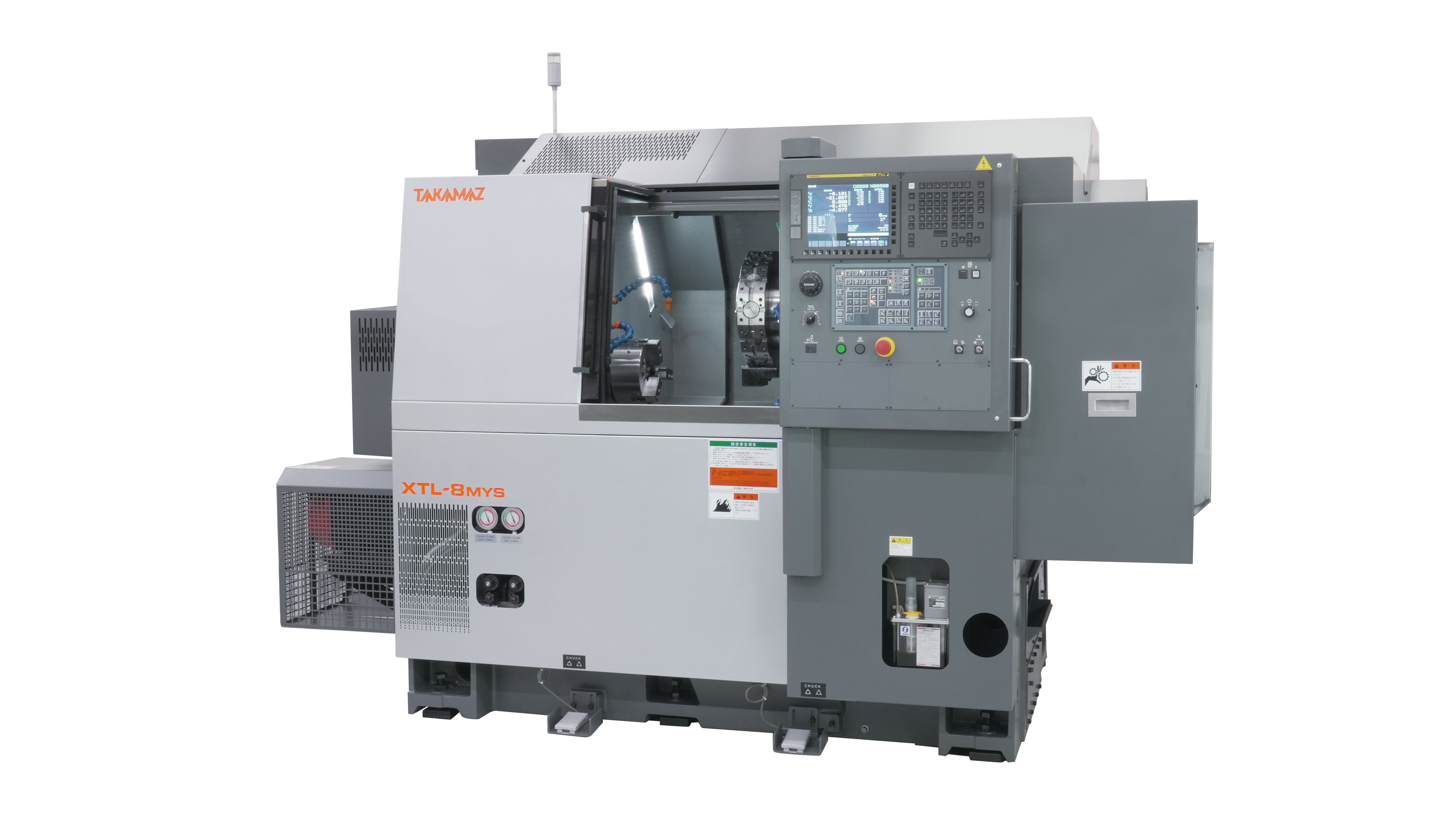

Power Tool (XTL-8MY/8MYS)

FANUC 0i-TF PLUS

A:400mm, 30m/min (XTL-8MYS)

X, Z, C, Y, A axis control

φ210mm

450/400mm

4,000rpm(3,500rpm)

8(10)-inch/ 8-inch

8-station turret x 2 ป้อมมีด

2 ป้อมมีดสามารถตัดพร้อมกัน

FANUC 0i-TF

X, Z axis control
